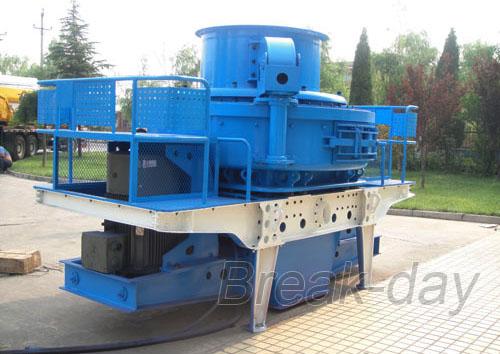

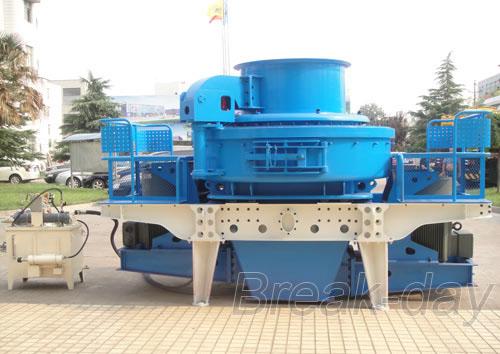

VSI5X series of Vertical shaft Impact Crusher introduces German technology. VSI5X with many patents is key equipment in sand making area. VSI5X is a kind of totally new high efficient crusher.

VSI5X series of Vertical Shaft Impact Crusher is widely used in various metallic and nonmetallic ores, cement, corhart, abrasive material, glass, construction material, machine-made sand, metallurgy, etc. It is also applicable to crush various stones with different hardness in medium and fine crushing area, such as iron ore, non ferrous metal, emery, bauxite, quartz sand, basalt, etc.

1.Rotor with deep chamber increases 30% capacity after perfect design. 2.Side plate direction can be changed to increase material utility ratio, operating ratio can be increased 48%. 3.Worn hammer with combined type is only changed to reduce operating cost 30%. Another pair of vice hammer is added to prevent from damaging main hammer and side plate. 4.The most key wear resistant material uses wear resistant and high temperature resistant material in American important area. 5.Rhombus shape impact plate is used to prevent side plate from being damaged. 6.Bearing is famous international brand imported from Japan, Sweden, America, etc. 7.Perfect discharge and smooth curve reduce resisting force when material flows, so capacity is increased greatly. 8.Spread dish with double purposes can make two feeding ways change easily. 9.Special seal structure under main shaft guarantee no oil leak without seal. 10.Japanese hydraulic opening cover device is originally imported. The cover is moved easily and inspection of inner part is easy. 11.Motor with high grade of protection is selected. The motor has features of high efficiency, low noise, etc. The motor complies with IEC, insulation grade F, protection grade IP54/55.

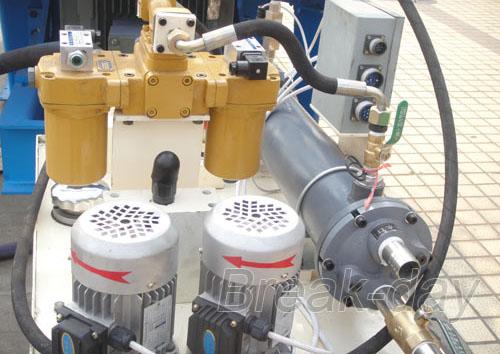

Oil box volume (L)	240
Rated pressure (MPa)	0.63
Flow capacity (L/min)	8
Power (KW)	0.31
Cooling water consumption (m3/h)	≥1.2
Electrical heating voltage (V)	220
Medium	Bearing oil 32—46#

Central feeding: see drawing one, the materials drop into the hopper, and then enter the impeller rotated with high speed through the central feeding hole and are fast speed up and cast out of the impellor. Firstly they will be impact with parts of the materials that free fallen after rebounded and then they impact with the impacting plate around the vortex cavity. Together they will be rebounded to the top of the crushing chamber, and then change the direction upward to right downwards and form continuous materials screen with the materials which are cast our from the impeller flow way plate. At last, the final products will be discharged from the outlet Central feeding with cascade feeding: see drawing three When materials enter the hopper, and they will be divided into two parts by the materials-distribution tray when they fall down through the ring-shape hole. One part enter the high speed rotated impeller through the materials-distribution tray and anther part fall down around the materials-distribution tray, the materials which enter the impeller will be cast out after speeding up fast inside the high speed rotated impeller, firstly will be impact crushed with another part of materials with fall down around the distribution tray and together they impact to the impacting plate around the vortex cavity, they will be rebounded to the top of the crushing chamber, and then change the direction upward to downwards and form continuous materials screen with the materials which are cast our from the impeller flow way plate. At last, the final products will be discharged from the outlet.
